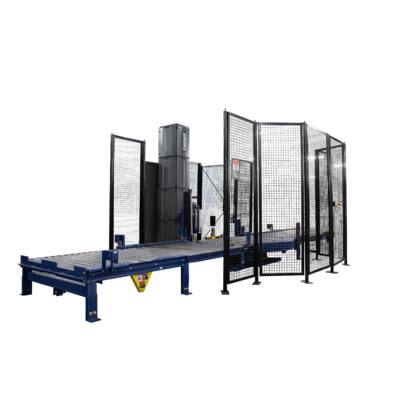

The Lantech QLA Turntable Automatic Wrapping Machine range is designed to improve end-of-line efficiency, delivering up to 45 wrapped loads per hour while producing better, more secure pallet loads with less film. Built with Lantech’s patented LeanWrap® technology, the QL range combines Load Guardian®, Pallet Grip® and Metered Film Delivery® to create, maintain and deliver the right containment force for safe-to-ship loads every time. This helps reduce film usage, minimise load damage and lower overall packaging costs.
Engineered for dependable real-world performance, the system secures loads firmly to the pallet to help prevent shifting during transit, while intuitive controls reduce operator guesswork and support consistent wrapping standards across shifts. Metered Film Delivery® applies film with greater precision to improve containment force without crushing or twisting the load, helping to reduce film breaks and improve load quality.
Safety is built into the design as standard, with full fencing, PLd-rated electrical components and PLc-rated pneumatics helping to protect operators and support compliance. A wide selection of options, including LINC®, extended wrap height, high-speed performance upgrades and cold environment suitability, allows the machine to be tailored to specific operational requirements. For businesses seeking reliable, high-performance pallet wrapping with lower cost and carbon impact, the QL range offers a proven and scalable solution.
Key Features
- Wraps up to 45 loads per hour
LeanWrap® technology
Load Guardian® containment control
Pallet Grip® load-to-pallet security
Metered Film Delivery® system
Better wraps with less film usage
Reduces load damage and transit movement
Full safety fencing as standard
Guarantees
- 3-years parts, 1-year labour, unlimited cycles
Regionally-based, 24/7 global technical and customer support
Most parts ship same day
PLd electrical and PLc pneumatic safety ratings
Additional Features
- Available options in this range:
• LINC® remote monitoring and analytics
• Extended wrap height from 2032mm to 2794mm (80”-110”)
• High-speed package with turntable speed up to 25 RPM
• 2721kg (6,000lbs) capacity conveyor option
• Cold Package for 0 to -12°C environments
• Modular electric top platen for unstable loads
• Turntable washdown option
What can it be used for?
- There is a Q-Series model to match your material handling needs - fork truck, pallet truck or conveyor
An efficient and dependable pallet wrapping solution, the QL range is built for businesses that need to maximise throughput, reduce material use and maintain consistent load quality. By combining intelligent containment control, strong load-to-pallet security and robust safety standards, Lantech delivers a wrapping system that supports productivity, lowers operational risk and helps create safe-to-ship loads with confidence.
